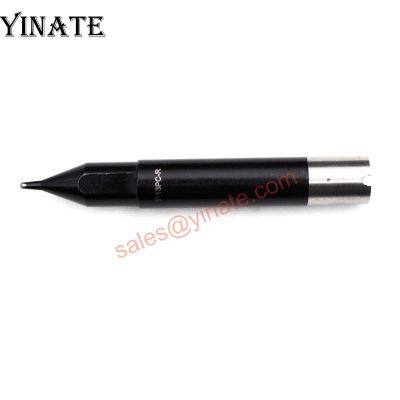

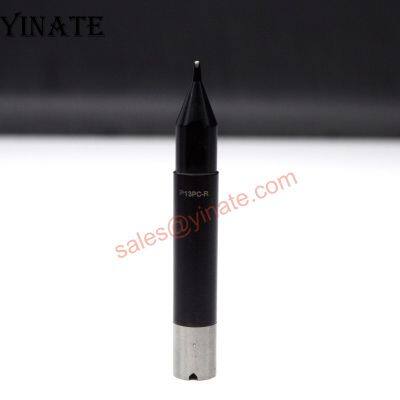

Japan Unix Cross Bit LS2D-N LS3D-N Soldering Bit LS2D-N1 LS3D-N1 Robotic Soldering Tips

Ms. Qingwu January 4, 2026

High Quality Japan Unix Cross Bit LS2D-N LS3D-N Soldering Bit LS2D-N1 LS3D-N1 Robotic Soldering Tips


Japan Unix soldering tip is high quality soldering iron tip designed for the use of automated soldering machine. which are environmental, Lead-free and adustable and can be special-shaped. We adopt the precise iron plating technology of Japan, numerical controlled automatic equipment and on-line measurement.

Specifications of Japan Unix Soldering Robot Tips


Models: LS2D-N LS3D-N LS2D-N1 LS3D-N1
Applied to JAPAN UNIX Soldering robot
Black chromium with Soldering Iron Tips.
Material: High purity copper
Safety rank: 1
Temp.range: 200-450 degree centigrade
CROSS HEATER / High power * high quality heater for Soldering Robot(CROSS HEATER FOR 200W )
Certificate: SGS, ROHS,CE
Tips: Custom-made Service available
Sample: Available for Free


Features of Japan Unix Cross Bit


1.Black chromium-plated tips.
2. It is fit for use with CROSS-HEATER.
3. CROSS-BIT is high quality iron tip desinged for the use of automated soldering.
4. Solder "tinned area" of tips pated with lead-free solder.
5. Stainless steel cross structure attached in position (female side) to meet the positioning projection on the inside of the heating element(CROSS-HEATER).
6. Available in numerous standard tip shapes, including point soldering and linear soldering.
7. Tips available in three sizes, ranging from 100W to 300W, to meet specific heater capacities.
8. Custom tips tailored to the customer's specifications can be designed and built in multiples of 10.


Advantages of YINATE Soldering Tips


Top five reasons to choose YINATE
1. Good quality, Lower price
2. Longer service life.
3. Short production cycle.
4. Free samples available.
5. Perfect after-sales service.


Japan UNIX Soldering Robot Tips Standard Models


P2D-N, P3D-N, P4D-N, L2D-N, L3D-N, L4D-N, LS2D-N, LS3D-N, LS2D-N1, LS3D-N1
P2D-R, P25D-R, P3D-R, P4D-R, P5D-R, P6D-R, L2D-R, L25D-R, L3D-R, L4D-R, L5D-R, L2D-R1, L25D-R1, L3D-R1, L4D-R1, L5D-R1, L6D-R1, LS2D-R1, LS25D-R1, LS3D-R1, LS4D-R1, LS5D-R1, LS6D-R1
P2D-S, P25D-S, P3D-S, P4D-S, P5D-S, P6D-S, L2D-S1, L25D-S1, L3D-S1, L4D-S1, L5D-S1, L6D-S1, LS2D-S1, LS25D-S1, L3SD-S1, LS4D-S1, LS5D-S1, LS6D-S1
P3PC-S, P4PC-S, P6PC-S, P9PC-S, L2PC-S, L3PC-S, L4PC-S, L6PC-S, L7PC-S, L9PC-S, LS2PC-S, LS3PC-S, LS4PC-S, LS6PC-S, LS9PC-S
P12DVAP, P13DVAP, P16DVAP, L12DVAP, L13DVAP, L16DVAP
P120BCPC, P125BCPC, P130BCPC
P10DCN-R, P15DCN-R, P10DCN-L, P15DCN-L, L25DC-R, L30DC-R, LS25DC-R, LS3DC-R, LS4DC-R, LS5DC-R, LS20DCV, LS30DCV
P6V08-18, P1V08-18, P1V10-20, P1V10-23, P1V12-23, P1V12-28, L1V10-20, L1V10-23, L1V12-23, L1V12-28, L6V08-18, L6V12-23, LS1V08-18, LS1V12-23, LS1V12-28, LS1V15-30, LS1V18-33
